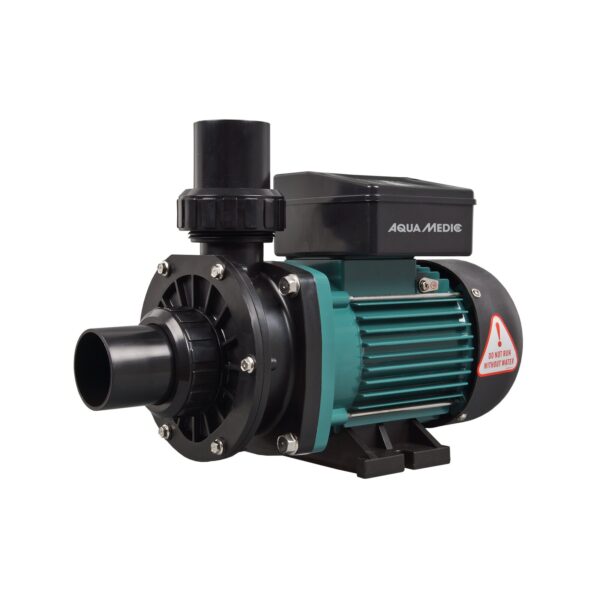

Aqua-Medic AM Pro Circulation Pump 50

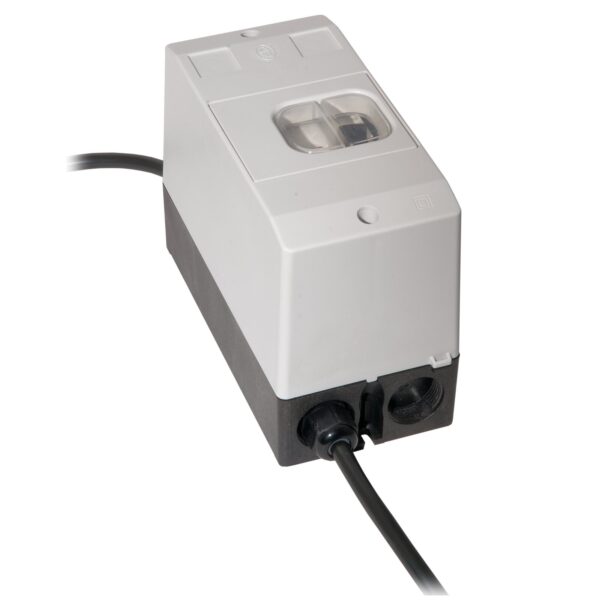

Description Circulation pump AM PRO 50, 75, 100  The circulation pumps in the AM PRO series are powerful with high performance. They have low energy consumption and operate at a low decibel volume. Minimal maintenance is necessary. The AM PRO pumps have a plastic housing. The axle is sealed with a mechanical seal. The pumps must be dry mounted.  Features: - Asynchronous, two-pole motor  - Protection type IP X5  - Integrated overload protection  - Highly effective cooling element for optimal heat dissipation  - Not self-extracting   Type  AM PRO 50  AM PRO 75 AM PRO 100  Power (KW) app.  0.55  0.75  0.90  Power (PS) app.  0.50  0.75  1.00  Power consumption (A) app.  2.5  3.5  4.7  Power supply  220-230 V / 50 Hz  Protection class  IP X5  Sound level (dB) app.  60  60  65  Connections suction and pressure side  1.5"/50 mm  1.5"/50 mm  1.5"/50 mm  Weight (kg) app.  7.3  8.2  9.1  Dimensions (l x w x h) mm, app.  375 x 154 x 258  Flow rate  m3/h at 2 m pumping head  13.2  14.4  17.0  m3/h at 4 m pumping head  10.3  11.3  13.6  m3/h at 6 m pumping head  6.6  8.6  9.8  m3/h at 8 m pumping head  1.0  4.0  5.1 A motor protection switch is necessary for the operation of the pump.  The guarantee is void if the pump is used without a motor protection switch.
